3-ton biomass-fueled steam boiler.

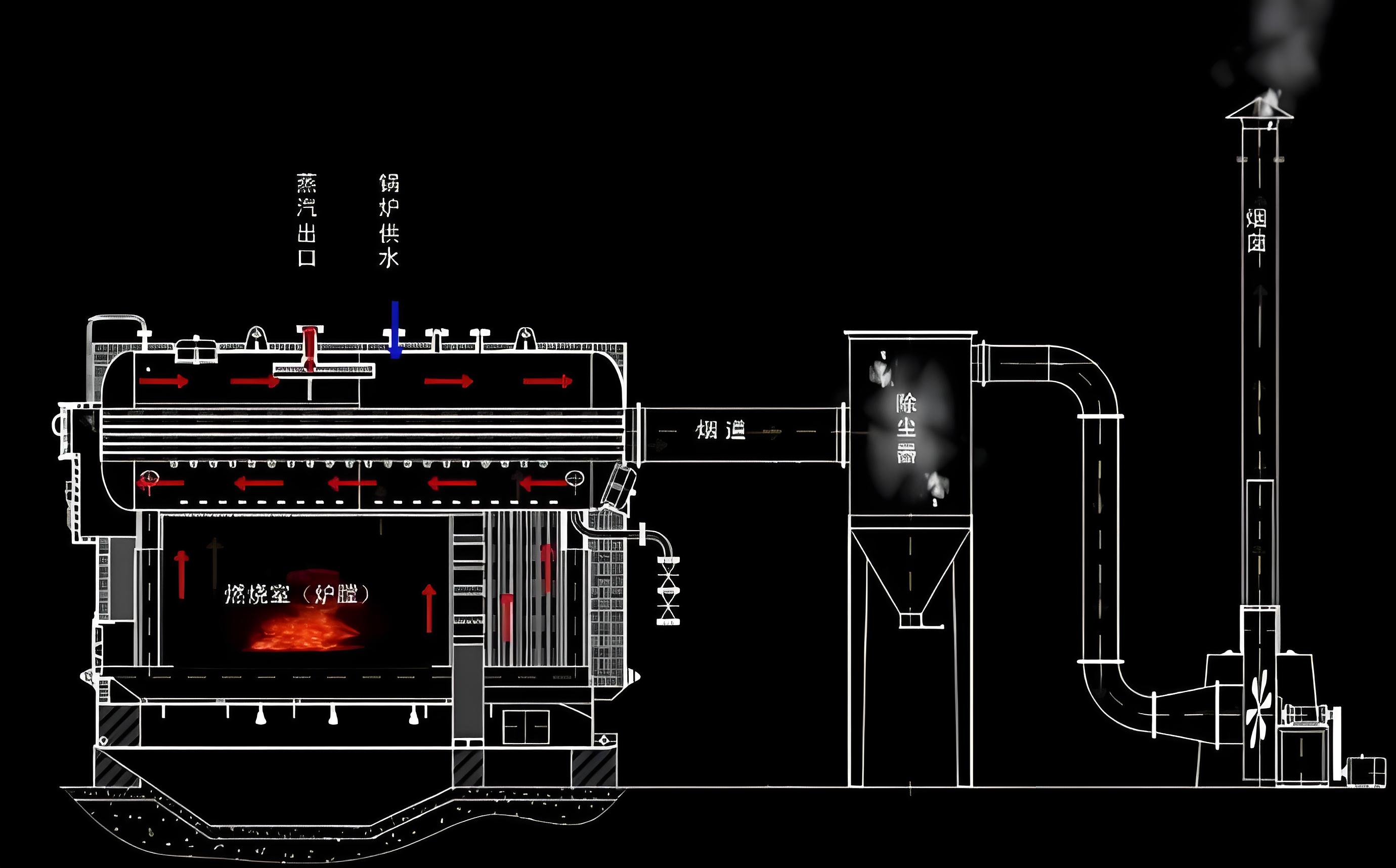

The DZH single-boiler drum, vertical-mounted, movable grate boiler is a horizontal three-pass water-and-fire tube boiler. The fuel for the boiler is agricultural and forestry waste, which is processed through crushing, mixing, compressing, drying, and other techniques to create various shaped (e.g., blocks, granules) forms of biomass fuel that can be directly burned as a new, clean fuel.

The DZH single-boiler shell, horizontal-type movable grate boiler does not require uniform feeding; manual and mechanical feeding methods can be chosen based on the characteristics of the fuel. The DZH single-boiler-shell, horizontal-type movable grate biomass boiler utilizes biomass fuel, which is environmentally friendly and clean, and complies with environmental regulations.

DZH single-boiler drum, vertical-mounted movable grate boiler: suitable for chemical, plastic, rubber, construction, forestry, concrete curing, board processing, pharmaceutical industry distillation, and other applications.
