SZL Biomass Steam/Hot Water BoilerCapacity: 2t/h-40t/h（2.8-28MW ）Steam Pressure:
page views： ℃
update time：2026-05-19 21:49
Capacity: 2t/h-40t/h（2.8-28MW ）
Steam Pressure: 0.7Mpa-3.8Mpa
Certificate: CE, SGS, BV, ISO9001, CCC, etc.
Fuel: Coal/wood pellet/rice husk/ peat pellet/biomass
SZL Biomass Steam or Hot Water Boiler Introduction

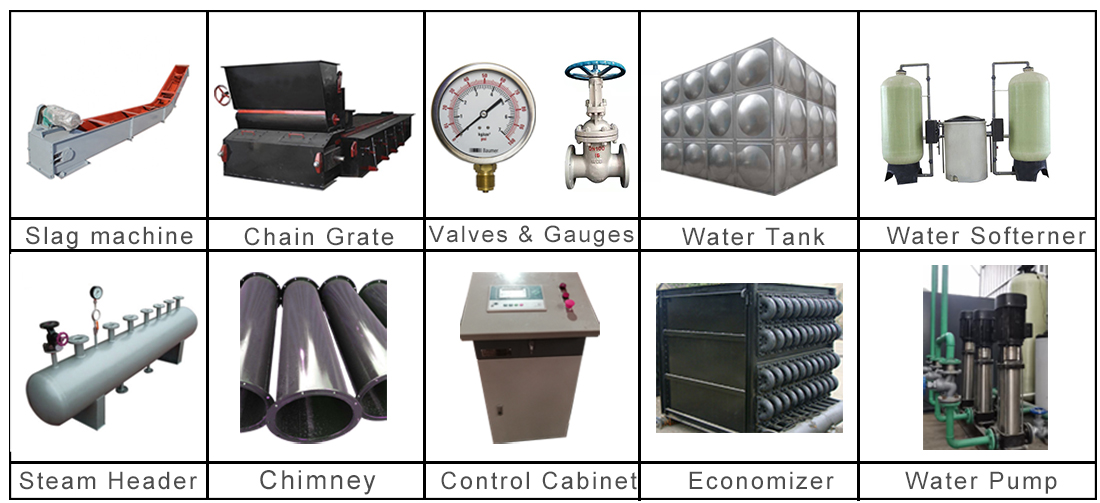

SZL biomass fired chain grate steam boiler is horizontal type water tube boiler, the combustion equipment is chain grate. The boiler adopts fast assembly or packaged assembly structure, boiler with steam capacity lower than 4t/h is fast assembly water tube structure, boiler with steam capacity between 6~25t/h is consisted of upper part (boiler heated part) and lower part (combustion equipment). The boiler is equipped with water-cooled walls, a steam-water separator, a blowdown system, and an economizer. This series of boilers has reached international advanced levels in terms of technology, performance, and environmental protection.
Applications: Foods, Garment, Textile, Paper, Brewery, Ricemill, Printing & Dyeing, Poultry feed, Sugar, Packaging, Plywood, Building material, Chemical, etc.
Parameters
SZL Series Biomass Fired Steam Boiler:
Model | Rated Steam Capacity (t/h) | Working Pressure (MPa) | Thermal Efficiency (%) | Overall Dimension L×W×H (m) | Weight (t) |
SZL2-1.25/1.6/2.5 | 2 | 1.25/1.6/2.5 | 81 | 5.8×2.35×3.5 | 25 |
SZL4-1.25/1.6/2.5 | 4 | 1.25/1.6/2.5 | 81 | 7.8×2.4×3.6 | 32 |
SZL6-1.25/1.6/2.5 | 6 | 1.25/1.6/2.5 | 81 | 8×3×4.87 | 43 |
SZL8-1.25/1.6/2.5 | 8 | 1.25/1.6/2.5 | 81 | 8.1×3.2×5.7 | 63 |
SZL10-1.25/1.6/2.5 | 10 | 1.25/1.6/2.5 | 81 | 8.2×3.5×5.7 | 87 |
SZL12-1.25/1.6/2.5 | 12 | 1.25/1.6/2.5 | 81 | 10.6×3.6×5.7 | 100 |
SZL15-1.25/1.6/2.5 | 15 | 1.25/1.6/2.5 | 82 | 12.5×3.7×5.8 | 105 |
SZL20-1.25/1.6/2.5 | 20 | 1.25/1.6/2.5 | 82 | 13.8×4.2×5.8 | 140 |
SZL25-1.25/1.6/2.5 | 25 | 1.25/1.6/2.5 | 82 | 15.6×5×6.135 | 170 |
SZL30-1.25/1.6/2.5 | 30 | 1.25/1.6/2.5 | 82 | 17.7×8.5×9.5 | 210 |
Note:1.Parameter is for reference only, if any changes should follow the factory technical data. | |||||
SZL Series Biomass Fired Hot Water boiler:
Model | Rated Power (MW) | Working pressure (Mpa) | Supply water temperature (℃) | Return water temperature (℃） | Thermal efficiency (%） |
SZL1.4-0.7/95/70 | 1.4 | 0.7 | 95 | 70 | 80 |
SZL2.8-0.7/95/70 | 2.8 | 0.7 | 95 | 70 | 80 |
SZL4.2-1.0/95/70 | 4.2 | 1 | 95 | 70 | 80 |
SZL5.6-1.0/95/70 | 5.6 | 1 | 95 | 70 | 80 |
SZL7-1.0/95/70 | 7 | 1 | 95 | 70 | 80 |
SZL10.5-1.0/115/70 | 10.5 | 1 | 115 | 70 | 80 |
SZL14-1.0/115/70 | 14 | 1 | 115 | 70 | 80 |
Note: 1.Parameter is for reference only, if any changes should follow the factory technical data. | |||||
