DZL Biomasse Dampf-/Heißwasserkessel
DZL Biomass Steam/Hot Water Boiler
Steam Capacity: 1t/h-30t/h(0.7MW-10.5MW)
Pressure: 0.7Mpa-3.8Mpa
Certificate: ISO/EAC/CE/ASME
Fuel: solid fuel, biomass, coal, wood pellet, bagasse, rice husk, etc.
Biomass Chain Grate Steam(Hot Water) Boiler Brief Introduction
The DZL biomass steam boiler is a single-drum, chain grate boiler suitable for various biomass fuels and coal. It adopts a combined water-tube and fire-tube design, with water-cooled walls for radiant heating and threaded fire tubes for efficient convection. The symmetrical structure and rear economizer improve thermal efficiency and reduce heat loss. Equipped with mechanical ventilation and a spiral slag remover, the boiler supports automated, safe, and reliable operation. Discharged ash can be reused as organic fertilizer. Biomass chain grate steam boiler applications: textile plant, rice mill, garment factory, utility or power plant, hospital, hotel, food & beverage, diaries, schools, etc.
Advantages & Features:
1. Easy installation: Factory-assembled for quick on-site setup.
2. Full combustion: Optimized furnace design ensures efficient fuel burning.
3. High-efficiency grate: Scale chain grate for uniform feeding and easy cleaning.
4. Safe operation: Equipped with low-water and overpressure protection.
5. Durable: Advanced manufacturing and strict inspection ensure long service life.
6. Eco-friendly and low noise: Dust removal system and low-noise fans meet emission standards.
7. Stable combustion without explosion risk.
Biomass/Coal/Wood Fired Boiler Types: including DZL chain grate coal/biomass boilers, DZH moving grate coal/biomass boilers, SZL double-drum chain grate biomass boilers, and vertical biomass steam generators, meeting diverse industrial requirements.

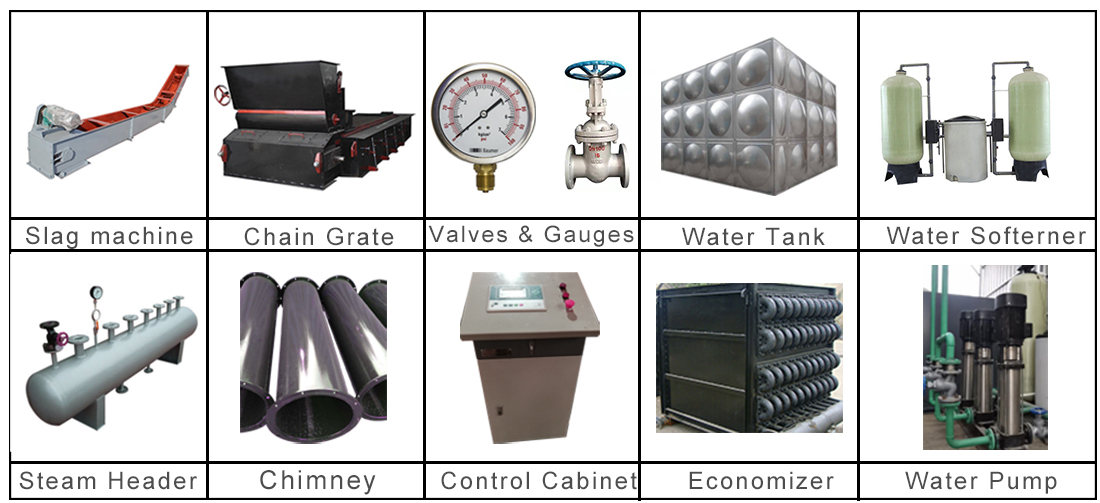

Whole biomass boiler system includes grate, boiler body, economizer, dust collector, flue, air duct, induced draft fan, blower, slag remover, loading machine, water pump, deaerator, etc.
DZL Series Biomass Fired Steam Boiler:
Model | Rated evaporation capacity | Rated pressure | Thermal efficiency | Fuel consumption | Overall Dimension | Weight |
(t/h) | (MPa) | (%) | (kg/h) | L×W×H (mm) | (ton) | |
DZL1-0.7/1.0/1.25-T | 1 | 0.7/1.0/1.25 | 82 | 200 | 5100×2200×3000 | 17 |
DZL2-0.7/1.0/1.25-T | 2 | 0.7/1.0/1.25 | 82 | 400 | 5500×2300×3300 | 23 |
DZL4-1.25/1.6-T | 4 | 1.25/1.6 | 82 | 800 | 6600×2600×3600 | 25 |
DZL6-1.25/1.6-T | 6 | 1.25/1.6 | 82 | 1200 | 8200×2900×3800 | 40 |
DZL8-1.25/1.6-T | 8 | 1.25/1.6 | 82 | 1600 | 8100×3100×3800 | 53 |
DZL10-1.25/1.6-T | 10 | 1.25/1.6 | 82 | 2010 | Up 7700×3200×3600 | 72 |
Down 8600×3200×6735 | ||||||
Note: 1. Parameter is for reference only, if any changes should follow the factory technical data. | ||||||
DZL Series Biomass Fired Hot Water Boiler:
Model | Rated power | Rated pressure | Supply water Temperature | Return water temperature | Thermal Efficiency | Overall dimension | Weight |
(MW) | (Mpa) | (℃) | (℃) | (%) | L×W×H (m) | (t) | |
DZL0.7-0.7/95/70 | 0.7 | 0.7 | 95 | 70 | 82 | 5.1x2.2x3 | 17 |
DZL1.4-0.7/95/70 | 1.4 | 0.7 | 95 | 70 | 82 | 5.5x2.3x3.3 | 23 |
DZL2.8-1.0/95/70 | 2.8 | 1 | 95 | 70 | 82 | 6.6x2.6x3.6 | 25 |
DZL4.2-1.0/95/70 | 4.2 | 1 | 95 | 70 | 82 | 7.5x2.9x3.8 | 35 |
DZL5.6-1.25/95/70 | 5.6 | 1 | 95 | 70 | 82 | 8.1x3.1x3.8 | 45 |
Note: 1. Parameter is for reference only, if any changes should follow the factory technical data. | |||||||
