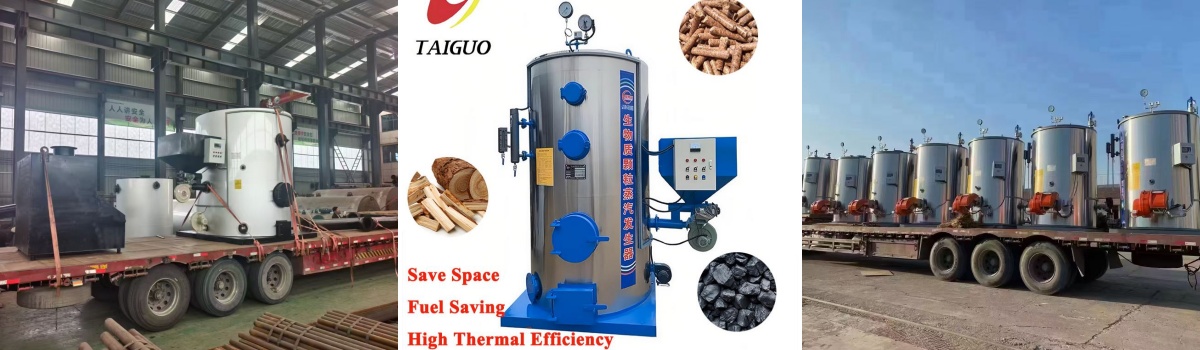

LHG Biomasse Dampfgenerator
LHG Biomass Steam Generator
Steam Capacity: 0.1-2t/h
Boiler Power: 19 to 190 HP
Pressure:≤10 BAR
Fuel: Biomass, Wood, Coal

Features
Applicable fuels: wood, coal, biomass pellets. Fuel addition can be done manually or automatically. Environmental protection: This boiler is equipped with an advanced flue gas filter, achieving smokeless and dust-free emissions. High thermal efficiency: Three-pass fire-tube design, equipped with low-noise fans and induced draft fans.

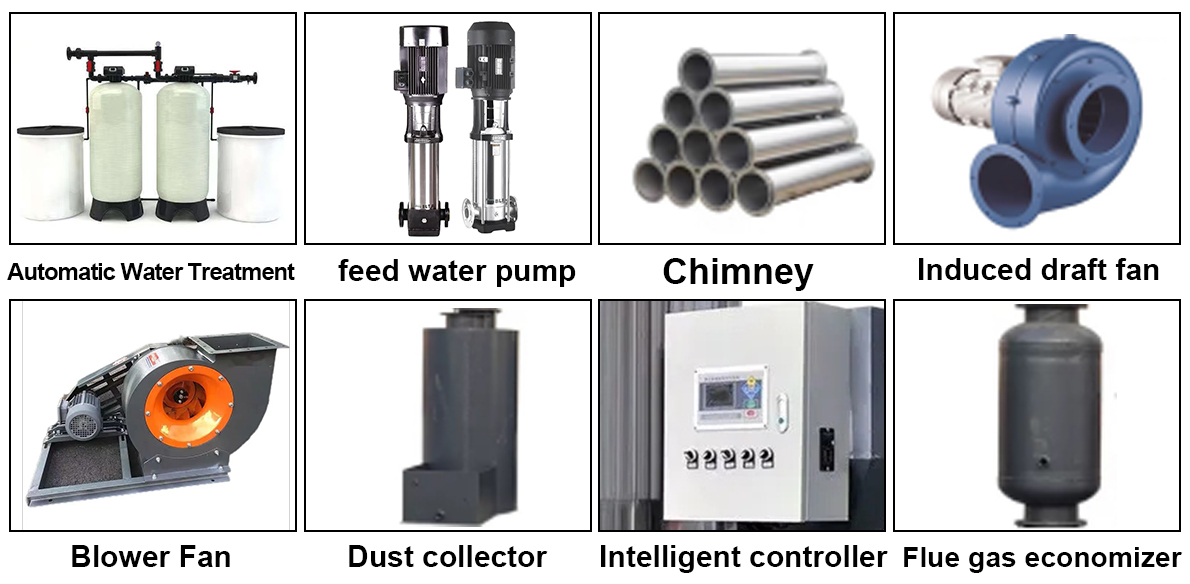

Auxiliary

Parameters
| Model | LHG0.3 | LHG0.5 | LHG0.7 | LHG1 | LHG1.5 | LHG2 | LHG3 |
| Steam Capacity | 300 KG/H | 500 KG/H | 700 KG/H | 1000 KG/H | 1500 KG/H | 2000 KG/H | 3000 KG/H |
| Working Pressure | ≤10Bar | ≤10Bar | ≤10Bar | ≤10Bar | ≤10Bar | ≤10Bar | ≤10Bar |
| Steam Temperature | ≤184℃ | ≤184℃ | ≤184℃ | ≤184℃ | ≤184℃ | ≤184℃ | ≤184℃ |
| Available Fuel | Wood, Biomass pellet, Coal Palm shell, Peanut shells, Sugar cane dregs, etc. | ||||||
| Smoke/ Dust Purification Method | Water film purification | ||||||
